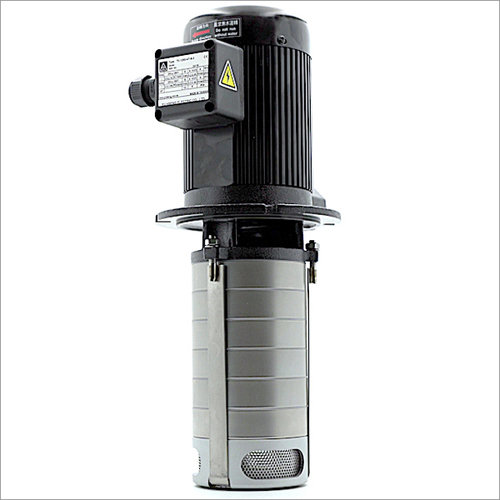

1 HP Multistage CNC Machinery Coolant Pump shaft 4 stage 199mm (9inch) 3 impellers TC-1199-4T-4-3

Product Description

Product Features

• Immerse self-priming vertical multistage centrifugal pump.
• Co-axial pump and motor design.
• Impellers assemble on extended motor shaft.
• High quality stainless steel performed main working parts.
• Cast iron middle position flange for stability.
• Easy installation into machine and simple disassembly.
• Customize are available.

Specification

The TC4T Series is vertical multistage pump and developed for machine tools applications like CNC. It is suitable to carry liquid such as water, coolant, light oil and other clean, non-aggressive matters. The performance equivalent to most of major brands (Grundfos, Stair, Warlus  TPHK etc.)

- Brand: YU HSENG
- Model: TC-1199-4T-4-3
- Power: 750 W (1 HP )
- Phase & Voltage Options: 3 Phase and 208V; 220V, 240V, 415V, 440V, 480V
- Discharge Bore: PT  3/4 "  (PT=BSPT=Rc)
- Length ( flange to bottom): 199mm (7.8 ")

- 4T= (4 m3/h)

- Ambient temperature: Max. + 50C

- Liquid temperature range : + 0C  + 90C

- Submerged depth : Min. 40 mm

3 impellers : TC-1199-4T-4-3 Performance

Max Flow Rate in 60 Hz: 41.2 GPM ( 156 L/min )

Max Lift (Head Height) in 60 Hz : 114.5 ft (34.9 M )

Max Pressure in 60 Hz : 49.6 PSI
